AUTONOMOUS
NAVAL PLATFORMS

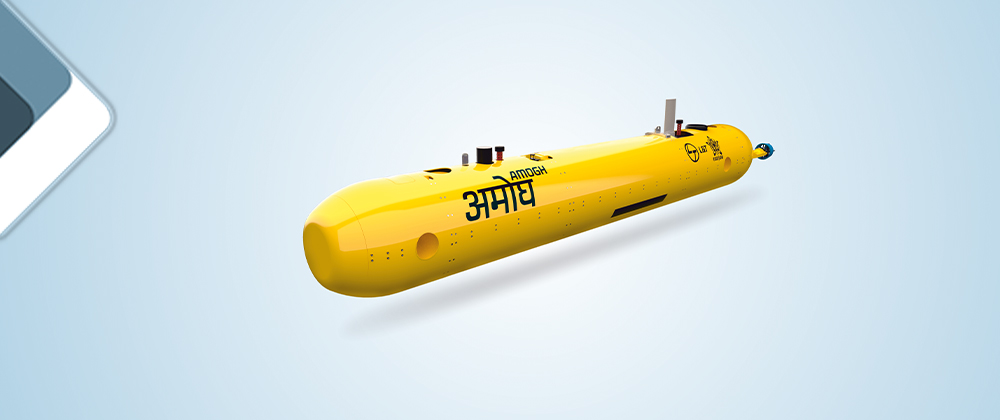

Amogh is a deep water AUV, designed for the modern hydrographer. IHO S-44 special order survey grade, it provides high quality, high resolution data with excellent position accuracy. It is supplied with a proven LARS (Launch & Recovery System) allowing for safe and efficient launch/recovery.

Key Features

• Dimension: OD 700 x L 5700 mm
• Endurance / Top Speed: 22 hr / 5 Kn
• Operating depth: 1000 m
• Weight: 1000 kg
• Payloads options: Side Scan Sonar/Multiple Aperture Side Scan Sonar/Synthetic Aperture Sonar, Multi Beam Echo Sounder, Sub Bottom Profiler, Sound Velocity Profiler, CTD (Conductivity-Temp-Depth), Camera
• Mission Capability: Hydrographic Survey, Rapid Environment Assessment, Mine Counter Measure

Adamya is capable of launch from a standard NATO torpedo tube and is ideal for covert operations from a submarine. A modular system, the vehicle is suited for varied missions.

Key Features

• Dimension: OD 325 x L 3250 mm
• Endurance / Top Speed: 8 hr / 6 Kn
• Operating depth: 500 m
• Weight: 250 kg
• Payload options: Side Scan Sonar / Multiple Aperture Side Scan Sonar / Synthetic Aperture Sonar, Multi Beam Echo Sounder, Sub Bottom Profiler, Sound Velocity Profiler, CTD (Conductivity-Temp Depth), Camera
• Mission Capability: Hydrographic Survey, Rapid Environment Assessment, Mine Counter Measures

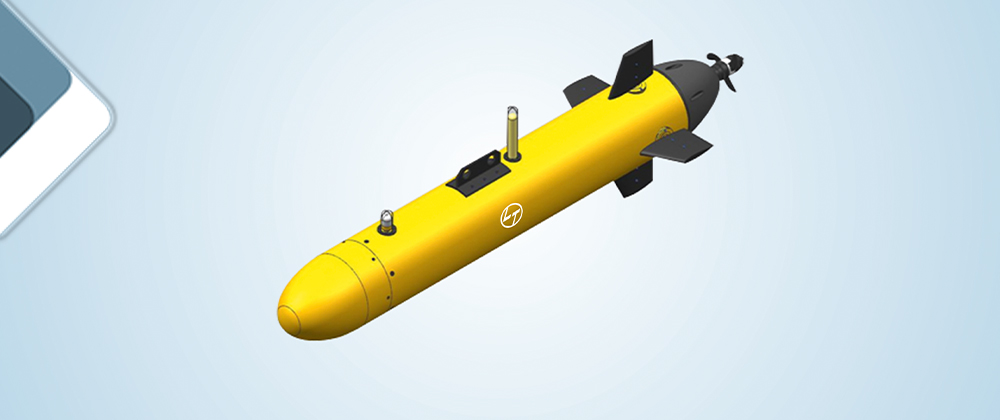

Maya is India’s first field deployed AUV platform with a proven track record in river water, coastal, and open sea environments. Post receipt of ToT from National Institute of Oceanography, it has been re-engineered into multiple configurations suited to diverse applications. This versatile platform is simple to operate yet rugged in design for rough missions.

Key Features

• Dimensions: OD 240 to OD 325 / L 2000 to L 3250 mm (Configuration Dependent)
• Endurance / Top Speed: 8 hr / 5 Kn
• Operating Depth: 300 / 600 m
• Weight: 75 / 250 kg (Configuration Dependent)
• Payload options: Side Scan Sonar / Multiple Aperture Side Scan Sonar / Synthetic Aperture Sonar, Multi Beam Echo Sounder, Sound Velocity Profiler, CTD (Conductivity, Temperature and Depth), UW Camera, Periscope Camera
• Mission capability: Intelligence Surveillance & Reconnaissance, Rapid Environment Assessment, Mine Counter Measures, Anti Submarine Warfare, training target, subsea surveys, R&D

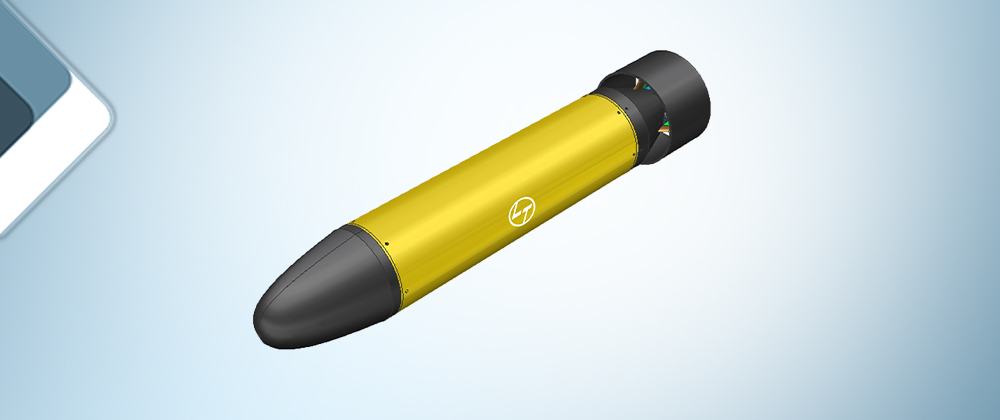

EUT is a man-portable, low logistics, open ocean, Anti-Submarine Warfare (ASW) training target. EUT allows the training of ASW personnel and equipment in the detection, tracking and weapon employment against a representative threat. It is operable from surface ships / boats, helicopters and ASW aircraft.

Key Features

• Dimension: OD 240 x L 1500 mm
• Endurance / Top Speed: 4 hr / 8 Kn
• Operating Depth: 150 m
• Weight: 50 kg
